Machine Dimensions (L x W x H)118.11" x 116" x 106"
Machine Weight..............................11,000 lbs
Max Tool Diameter..... 3.14" / 4.33"
Max Tool Length........13.8"
Max Tool Weight............13.78 lbs.
Rapid Traverse Rates ........(X & Y / Z)787 / 590 IPM
Spindle Motor......................15 / 10 / 7.5 HP AC
Spindle Nose to Table Top..................4.3" - 24.4"
Spindle Speed.............................40 - 8000 RPM
Spindle Taper.....................................CAT 40
Table Load Capacity.............................1120 lbs.
Table Size..................................57.48" x 16.1"
Tool Change Time (C - C).........................9 Seconds
Tools...................................................24
X-Axis...............................................44.09"
Y-Axis...............................................16.14"
Z-Axis...............................................20.08"

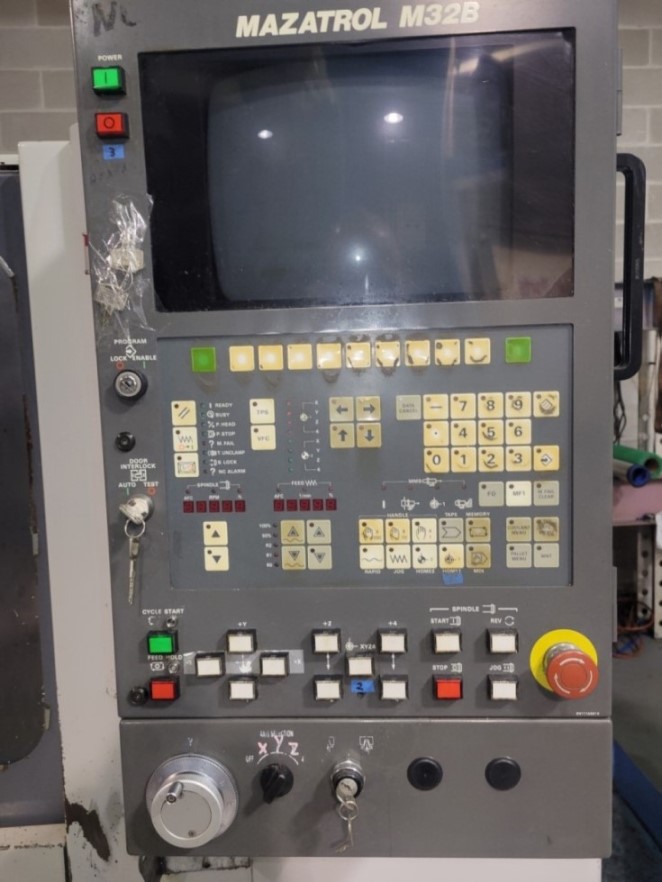

MAZATROL M-32B CNC CONTROL
12" Monochrome CRT
Conversational Programming
EIA/ISO Input Function
Graphic Display
Helical Interpolation
Chip Conveyor (Right Side Exit)
Auto Tool Length Measurement
machine is in good working condition
