2008 FADAL 4020 HT VMC, 40"X, 20"Y, 20"Z,10,000 rpm   Our stock number: 3005

2008 FADAL 4020 HT VMC, 40 X, 20 Y, 20 Z,10,000 rpm

Click on picture below for larger version
2008 FADAL 4020 HT VMC, 40 X, 20 Y, 20 Z,10,000 rpm2008 FADAL 4020 HT VMC, 40 X, 20 Y, 20 Z,10,000 rpm2008 FADAL 4020 HT VMC, 40 X, 20 Y, 20 Z,10,000 rpm2008 FADAL 4020 HT VMC, 40 X, 20 Y, 20 Z,10,000 rpm

Specifications:


TRAVEL:

X-axis....................40"

Y-axis....................20"

Z-axis....................20"

Power...................15 hp

SPINDLE SPEED...........10,000 RPM

AUTOMATIC TOOL CHANGER....30 TOOLS

Taper....................BT-40

Table-W....................20"

Table-L....................48"

# Axis......................3

Rapid Traverse Rate......900 IPM
Dimensions............ 117" L, 103" W

Weight...................11,000 lbs
EQUIPPED WITH:

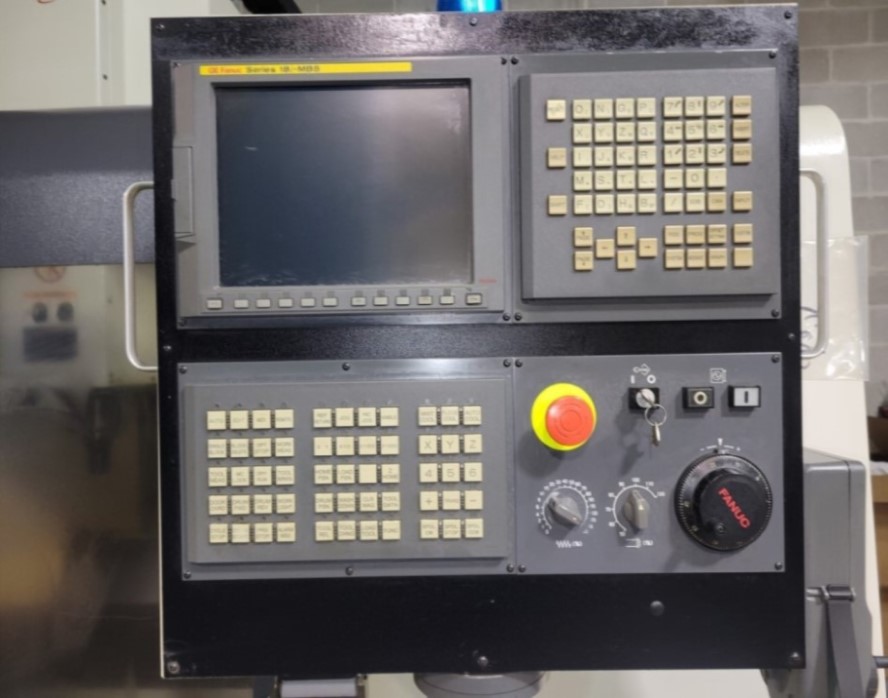

Fanuc 18i-MB5 CNC control with Manual Guide i (Fanuc conversational)

Remote pulse generator

optional 30 position tool change

BT-40 taper

10 to 10,000 rpm 2-speed vector drive

Box ways X/Y/Z axes

Max weight on table 3,641 lbs

Rigid Tapping

Voltage, 240 volt

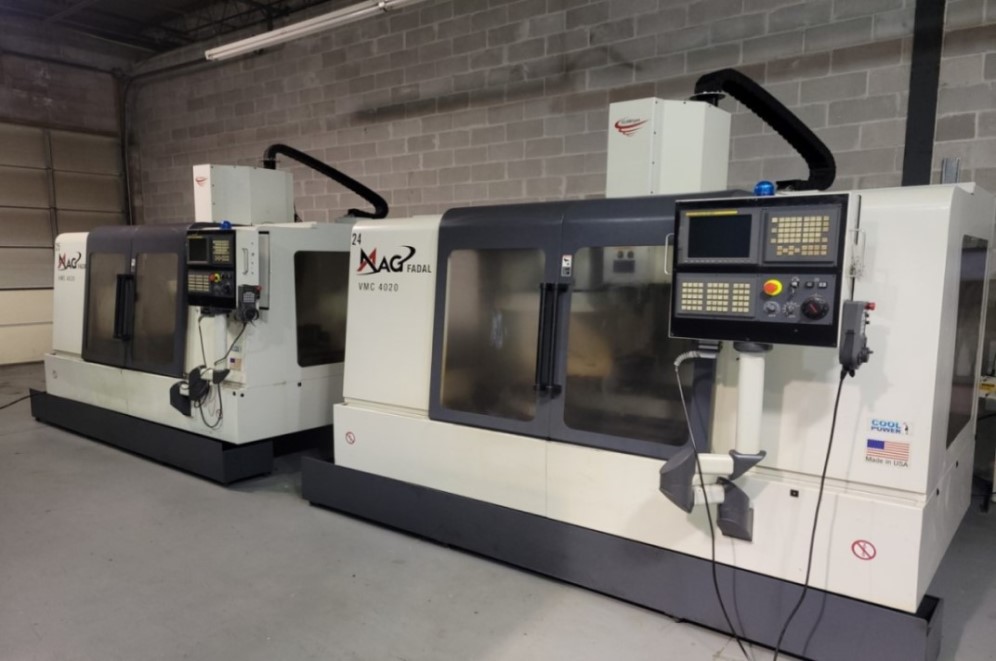

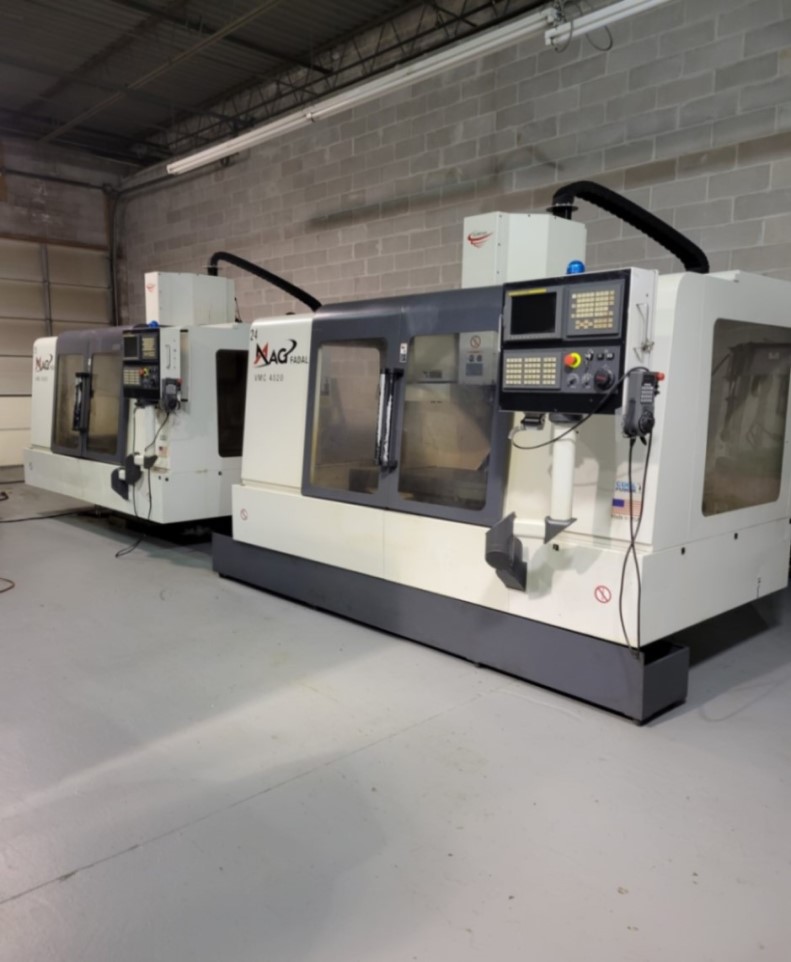

Two Identical Machines Available
