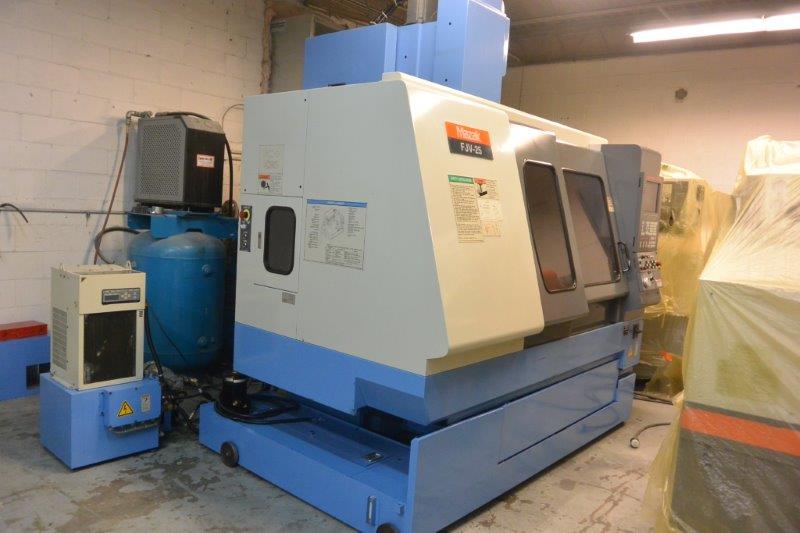

MAZAK BRIDGE TYPE FJV-25,40.15"X,20.07"Y,18.11"Z,12,000-RPM,M-PLUS,PROBE,1997   Our stock number: 2893

MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997

Click on picture below for larger version
MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997
MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997MAZAK BRIDGE TYPE FJV-25,40.15 X,20.07 Y,18.11 Z,12,000-RPM,M-PLUS,PROBE,1997

Specifications:
Table Size ......................... 47.24" x 21.65"
Table Load Capacity ................ 1,760 lbs.
Table Top to Spindle Nose .......... 7.87" - 25.98"
X-Axis Travel ...................... 40.15"
Y-Axis Travel ...................... 20.07"
Z-Axis Travel ....................... 18.11"
Spindle Taper ........................ CAT 40
Spindle Speed up to ................ 12,000 RPM
Spindle Motor ....................... 30 HP
Obtains Full Horsepower ............. @ 4,700 RPM
Tool Magazine Capacity .............. 21 Position ATC
Tool Change Time - chip to chip ..... 5.9 Seconds
Rapid Traverse ...................... 1,181 IPM
Machine Dimensions .................. 102"x95"x108"
Machine Weight ...................... 12,100 lbs.


Equiped with
* Mazatrol M-Plus CNC Control With Additional Memory 1000M-3281FT
* RS-232 Port for DNC Interface
* Auto. Tool Length Measure.
* Helical Interpolation
* Rigid Tapping
* Renishaw MI12 Machine Interface CNC Probe
* Ibag TDU-60 Thru Tool Coolant

This Machine Is In Excellent Condition
** Original Paint With: 4,222 Cutting Hours
