SPINDLE NOSE ......................... A1-6
ACCURACY (SEC.) ...................... +- 7.5
REPEATABILITY (SEC.) ................. 2
FACEPLATE RUN OUT (IN-TIR) ........... .0004
WORM TO WORMWHEEL RATIO .............. 90:1
MOTOR TO WORM PULLEY RATIO ........... 2:1

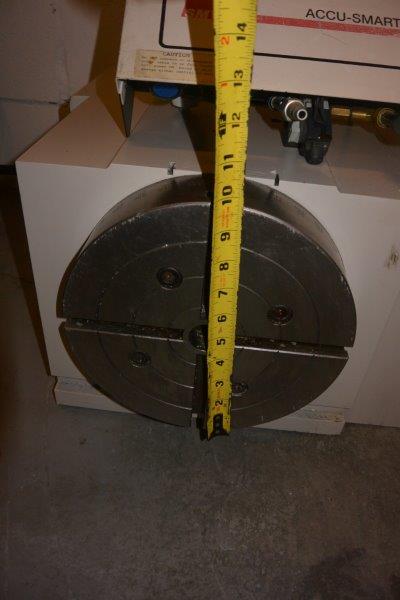

FACEPLATE DIAMETER (IN) .............. 9.84"
CENTER HEIGHT (IN) ................... 7.09"
WEIGHT WITH MOTOR .................... 385 LBS
SPINDLE BEARINGS ..................... TAPERED ROLLER
BRAKE TORQUE (FT-LB) ................. 340
BASE KEY WIDTH ....................... .701
WORM ................................. HARDENED ALLOY STEEL
WORMWHEEL ............................ BRONZE
LOAD CAPACITY ........................ 220 LBS
AXIAL TRUST FT-LB .................... 2870
AXIAL TORQUE FT-LB ................... 650
DRIVE TORQUE FT-LB ................... 350
