MACHINE SPECIFICATIONS:
SWING OVER BED ............. <36.4> INTERFACE WITH FRONT COVER <22.8>
SWING OVER CROSS SLIDE ..................... 29.7"
MAX. TURNING DIAMETER ...................... 14.0"
STANDARD TURNING DIAMETER .................. 10.8"
MAX. TURNING LENGTH ........................ 20.2"
BAR WORK CAPACITY .......................... 2.5"
X-AXIS TRAVEL .............................. 10.2"
Z-AXIS TRAVEL .............................. 23.2"
Y-AXIS TRAVEL .............................. 100<+-50>
HEADSTOCK 2 TRAVEL ............... 22.2"
MAX. SPINDLE SPEEDS ........................ 5,000 RPM
TYPE OF SPINDLE NOSE ....................... JIS A2-6
THTOUGH SPINDLE HOLE DIAMETER .............. 2.9"
MIN. SPINDLE INDEXING ANGLE ................ 0.001"

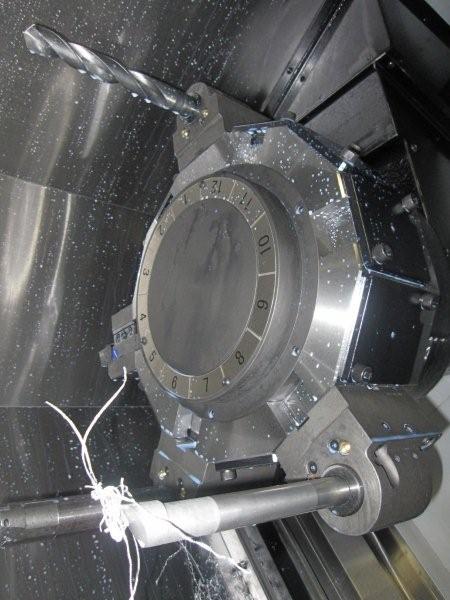

NUMBER OF TOOL STATIONS .................... 12
TURRET INDEX TIME .......................... 0.25
MAX. ROTARYTOOL SPINDLE SPEEDS ............. 6,000 RPM
RAPID TRAVERSE X,Z ......................... 1,181.1
Y AXIS .................... 393.7
TAILSTOCK TRAVEL ........................... 22.2"
TAILSTOCK SPINDLE DIAMETER ................. 3.1"
TAPER HOLE OF TAILSTOCK .................... MT-3
SPINDLE DRIVE MOTOR ........................ 20 HP
ROTARY TOOL SPINDLE DRIVE MOTOR ............ 7.5/5/5 HP
MACHINE SIZE ............................... 106" X 75"
MACHINE WEIGHT ............................. 12,540 LBS

EQUIPPED WITH:

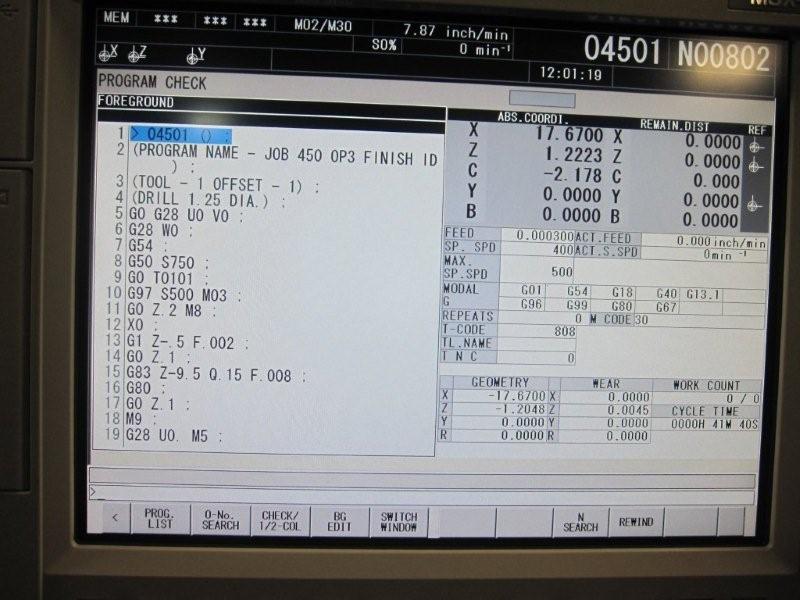

* MSX-850 IV CNC CONTROL

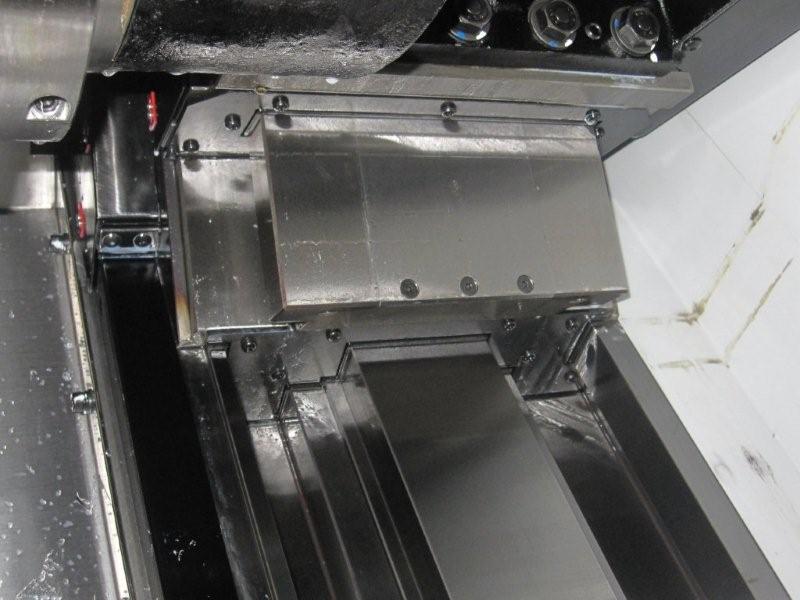

* HINGE TYPE CHIP CONVEYOR
* TOOL SETTER
*THREE LIVE HOLDERS
* 8" KITAGAWA HYDRAULIC CHUCK
* PARTS CATCHER


*** MACHINE HOURS UNDER 50 HOURS READY TO SHIP
