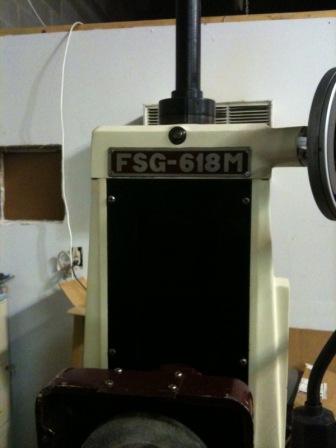

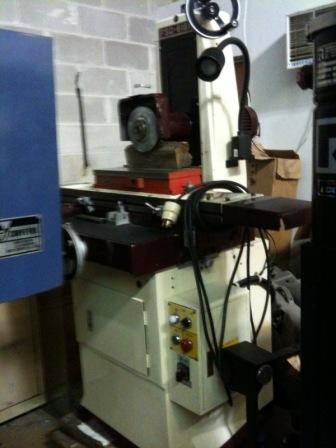

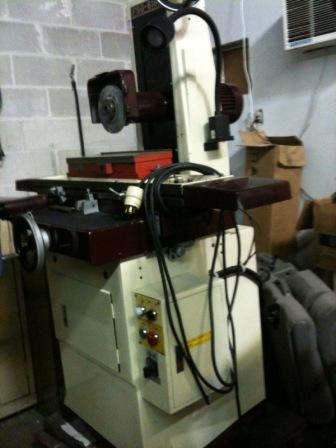

6" x 18", CHEVALIER FSG - 618M, 1998,   Our stock number: 2785

6 x 18 , CHEVALIER FSG - 618M, 1998,

Click on picture below for larger version
6 x 18 , CHEVALIER FSG - 618M, 1998,6 x 18 , CHEVALIER FSG - 618M, 1998,6 x 18 , CHEVALIER FSG - 618M, 1998,

Maximum Grinding Length 18"
Maximum Grinding Width 6"
Maximum Table Travel Longitudinal 19"
Cross 7"
Max. Distance From Table Working Surface To Spindle Center 18"
Handwheel Graduations : Cross .0005"
Downfeed .0001"
Spindle Speed 3,450 RPM
Wheel Size 8" Diameter x 1/2" Width x 1-1/4"Bore
Equipped With:
6" x 18" KINGUNG Permanent Magnetic Chuck
Halogen Work Light
Automatic Lubrication of Lead Screw and Ways
2 Hp Spindle Motor 230 Volt/460 Volt 3 phase
Net Weight 1,500 lbs
Floor Space 55" x 45" x 77"
Condition Very Good
