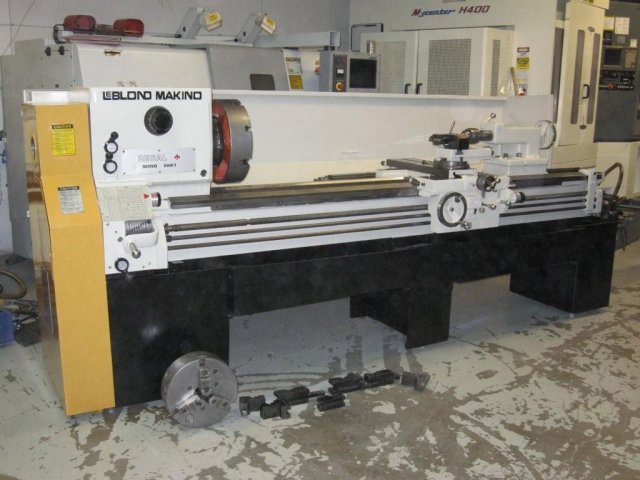

19" x 78" cc, LEBLOND MAKINO, 1985,INCH/METRIC THREADING, TAPER, 16" CHUCK   Our stock number: 2751

19 x 78 cc, LEBLOND MAKINO, 1985,INCH/METRIC THREADING, TAPER, 16 CHUCK

Click on picture below for larger version
19 x 78 cc, LEBLOND MAKINO, 1985,INCH/METRIC THREADING, TAPER, 16 CHUCK19 x 78 cc, LEBLOND MAKINO, 1985,INCH/METRIC THREADING, TAPER, 16 CHUCK19 x 78 cc, LEBLOND MAKINO, 1985,INCH/METRIC THREADING, TAPER, 16 CHUCK19 x 78 cc, LEBLOND MAKINO, 1985,INCH/METRIC THREADING, TAPER, 16 CHUCK

SWING OVER BED.......................... 19 1/4"
SWING OVER CROSS SLIDE.................. 12 1/4"
DISTANCE BETWEEN CENTERS................ 78"
SPINDLE SPEEDS (12 SPEED)............... 40 TO 1,600 RPM
SPINDLE NOSE............................ L-2
SPINDLE MOTOR........................... 10 HP
SPINDLE BORE............................ 3 1/16"

FLOOR SPACE..... 142" LONG X 52" WIDE
MACHINE WEIGHT.. 4,600 LBS

EQUIPPED WITH:
* SERVO SHIFT HEADSTOCK
* 12 SPEED GEAR AND BELT DRIVE
* TAPER ATTACHMENT
* INCH/METRIC THREADING
* CHASING DIAL
* COOLANT
* CHIP AND COOLANT SHIELD
* 16" 4-JAW CHUCK, 17" FAE PLATE, (2) 3-JAW CHUCKS
* QUICK CHANGE TOOL POST
